No-beam XB Series Edge Milling Machines
(State Practical new-type patent)

Functions & Characteristics
1. Single seat suction strength of strong magnetic chuck: 3T.
2. Strong magnetic chuck replaces traditional oil cylinder hydraulic unit to supply excellent stability and high accuracy.
3. Easy to load & unload the steel sheet, reduce accidents at work and improve work efficiency
4. Unit head add universal adjustment function to enlarge the cutting and milling range, can make any groove angle of 0-90° without using special molding cutting machine.
5. Unit head with semi-liquid lubrication, no oil leakage.
6. Central distance of milling pins is closed to reduce vibration and improve accuracy.
7. Utilization ratio of workshop has highly improved
8. Optimization of workmanship structure reduces malfunction and makes it easier to fix and repair.


Applicability

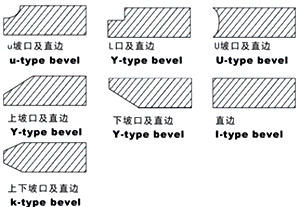

It is widely used in boilers, pressure vessels manufacturing industry, shipbuilding, electric power, chemical industry, petroleum engineering machinery, bridge construction, steel panel, steel structure and metallurgical machinery industry. It can make pre-groove, bevel edge, straight edge and U-edge of steel sheet before welding fully milled one time, and with low consumption, easy operation and maintenance & fix. Its milling angle is 0-90 °with processing thickness of 6-100mm, and also can be used to design and manufacture milling machine of special specifications.

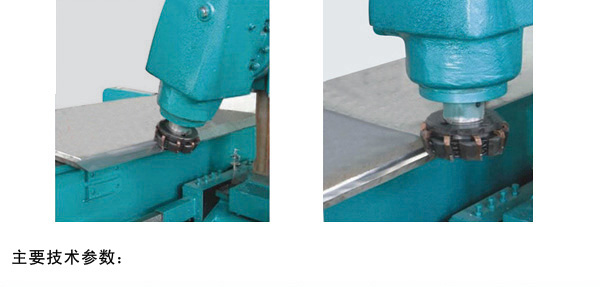

Milling Pictures:
